Product Description

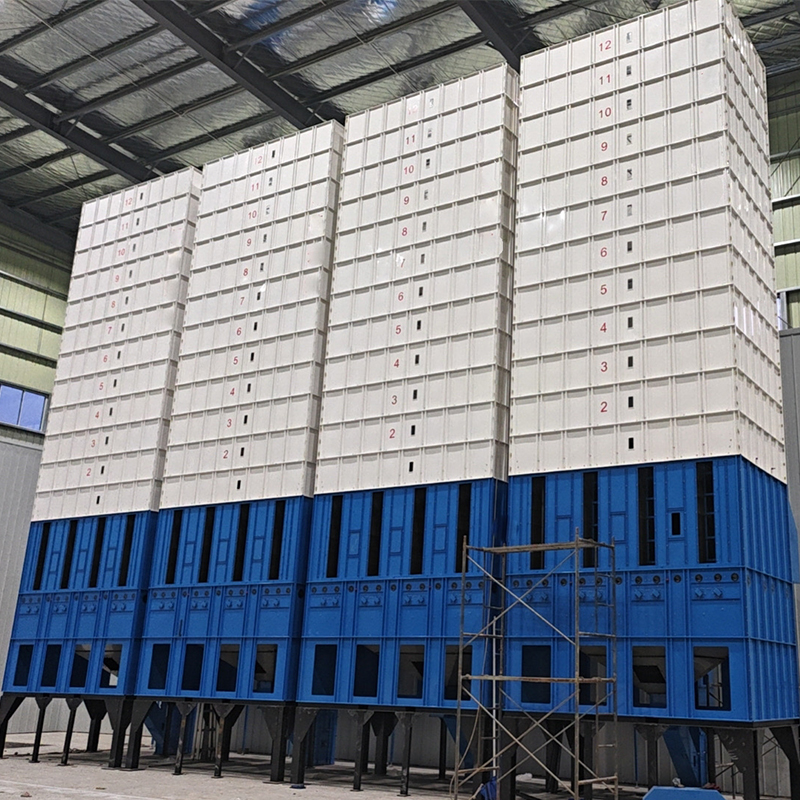

Our cross-flow grain dryer is a low-temperature circulating dryer that utilizes cross-flow drying technology. It features a simple structure, easy maintenance, quick installation, mature technology, and affordable price. It is specifically designed for large-scale grain drying, capable of efficiently and uniformly drying various grains while ensuring their quality remains unaffected. Its unique design and advanced technology provide significant advantages in both efficiency and reliability. Our dryer adopts a structure without an agitator cage, significantly reducing grain breakage rates compared to traditional grain dryers.
Technical Specifications
Sports Event |
Model Number |
5HXG-30B |
Species of cereals |
Rice (capacity 560kg/m³)(kg) |
4000-30000 |
Type of treatment |
Wheat(Capacity 680kg/m³)(kg) |
5000-34000 |
Body size |
Overall length (mm) |
4593 |
Overall Width (mm) |
4713 |
|
Overall height (mm) |
13695 |
|
Body weight (kg) |
8000 |
|
blowers |
Model |
LSHG-6A |
Common rotary speed(r.p.m) |
1450 |
|
burners |
Type |
High pressure gun type |
Ignition method |
Auto Ignition Auto Fuel Supply |
|
Combustion volume(L/h) |
3.0-35.0 |
|
Fuel use |
Light diesel oil, national standard No. 0 to No. 50 |
|
Rated voltage (V) |
Three-phase four-wire 380V, single-phase 220V |
|
Power requirements |
Handling motor(kw) |
3.7 |
Blower(kw) |
5.5*2 |
|
Grain discharge motor(kw) |
0.75 |
|
Dust discharge motor(kw) |
0.37 |
|
Dump motor(kw) |
0.55 |
|
Maximum simultaneous power usage |
19.37 |
|
performances |
Feed time |
Rice (min) 60-70 |
Wheat (min) 55-65 | ||
Discharge time |
Rice (min) 65-75 |
|
Wheat (min) 55-62 | ||
precipitation rate |
0.5-1.0 |
|
Other properties |
Safety device |
Full Grain Alarm Thermal Relay Wind Pressure Switch Protection |
Mode of operation |
Timed Mode Auto Mode Seed Mode |
|
Standard device |
Moisture testerDust extraction deviceClimbing ladder guardrail |
|
Optional heat source |
Hot air furnace oil and gas, etc. |
|
Equipment Features
1. Main Components
- Heating System: Utilizes an oil heating system where the fuel burns directly to produce high-purity hot air for drying.
- Control System: Equipped with online moisture monitoring, full grain alarm, overload protection, wind pressure detection, burner flame monitoring, abnormal furnace temperature protection, hot air sensor, grain temperature sensor, fault alarm display, and automatic shutdown control for enhanced safety.
- Drying Unit: Comprises tempering storage layer, drying layer, grain discharge mechanism, conveying auger, elevator, grain unloading device, and dehumidification fan.
2. Performance Advantages
- Daily Processing Capacity: Drying 1.5 batches daily.
- Drying Rate: The average low-temperature drying rate is 0.7-1 moisture points per hour.
Application scenario
Suitable crops include: wheat, rice, seeds, rapeseed, and more.
