Agricultural Drone Series
BRS50 PRO Agricultural Drone
Product Description

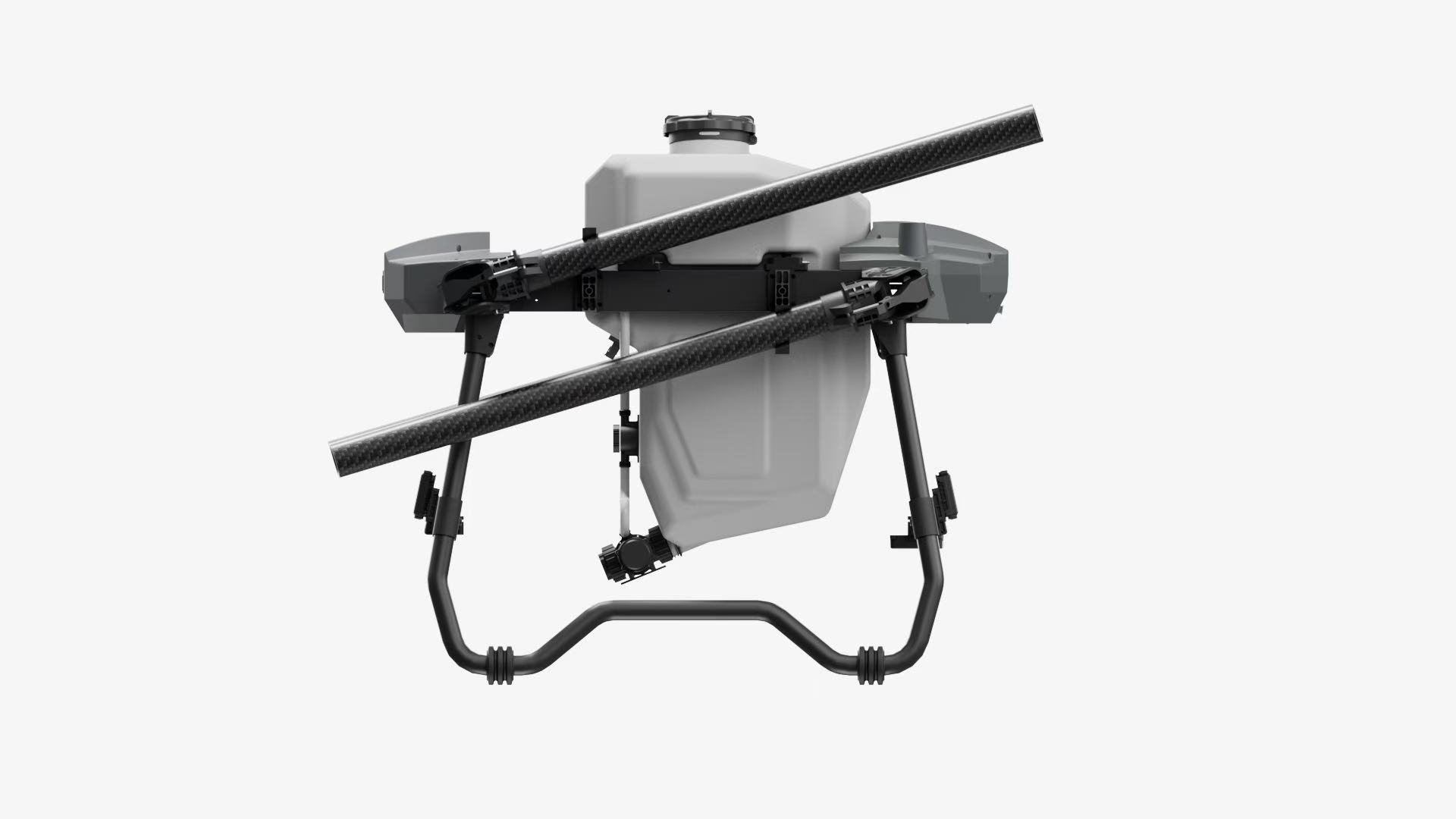

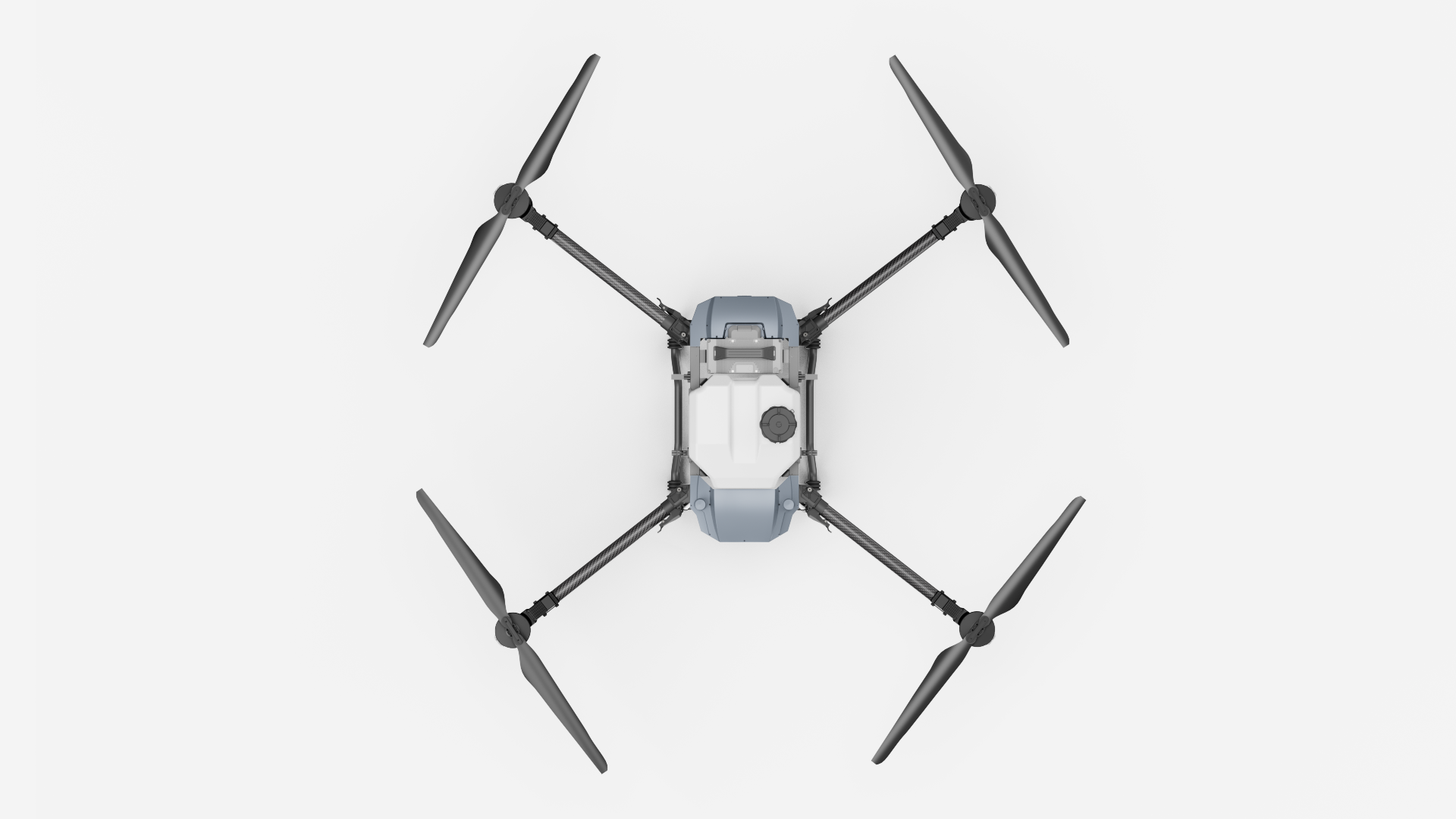

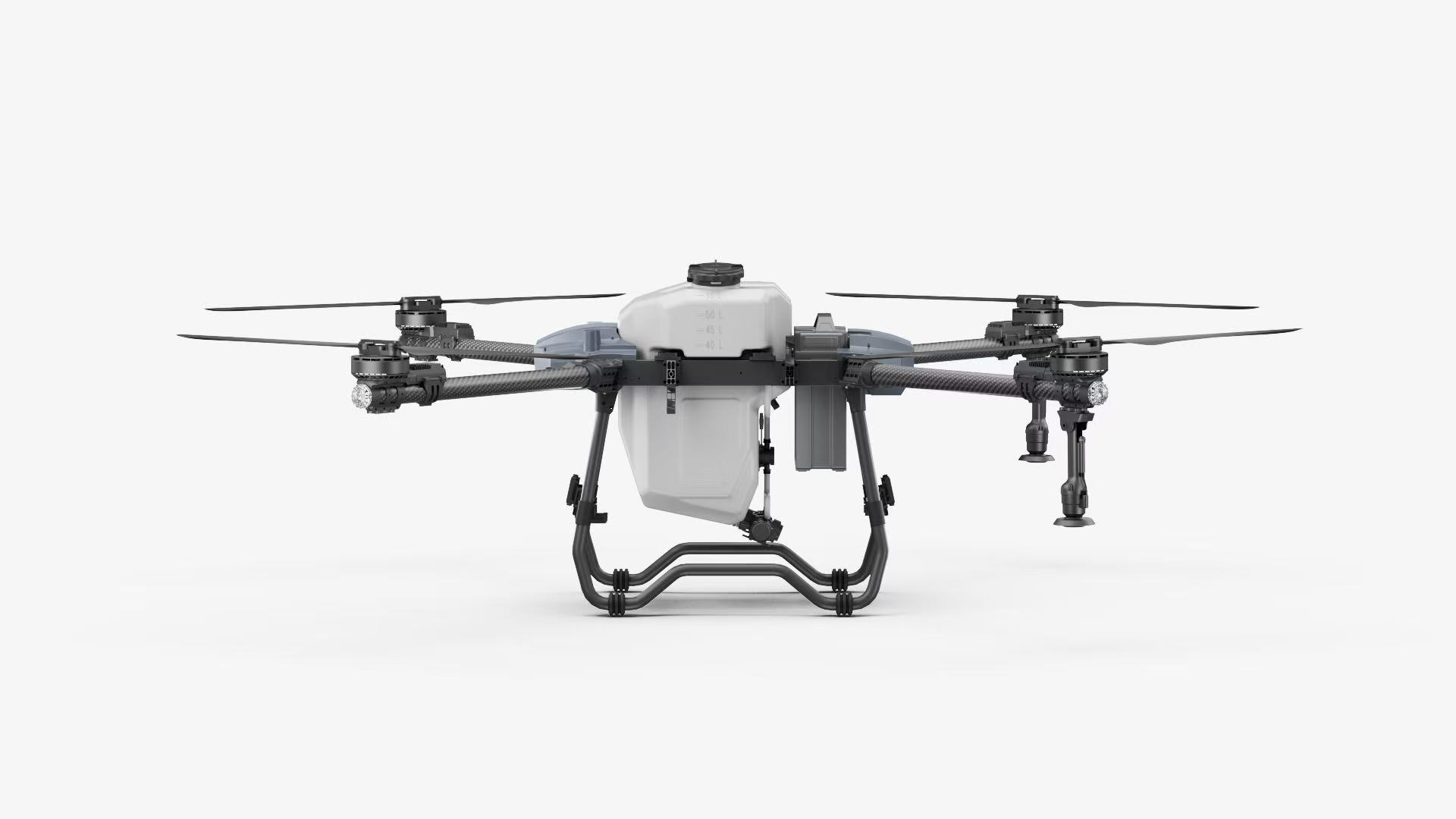

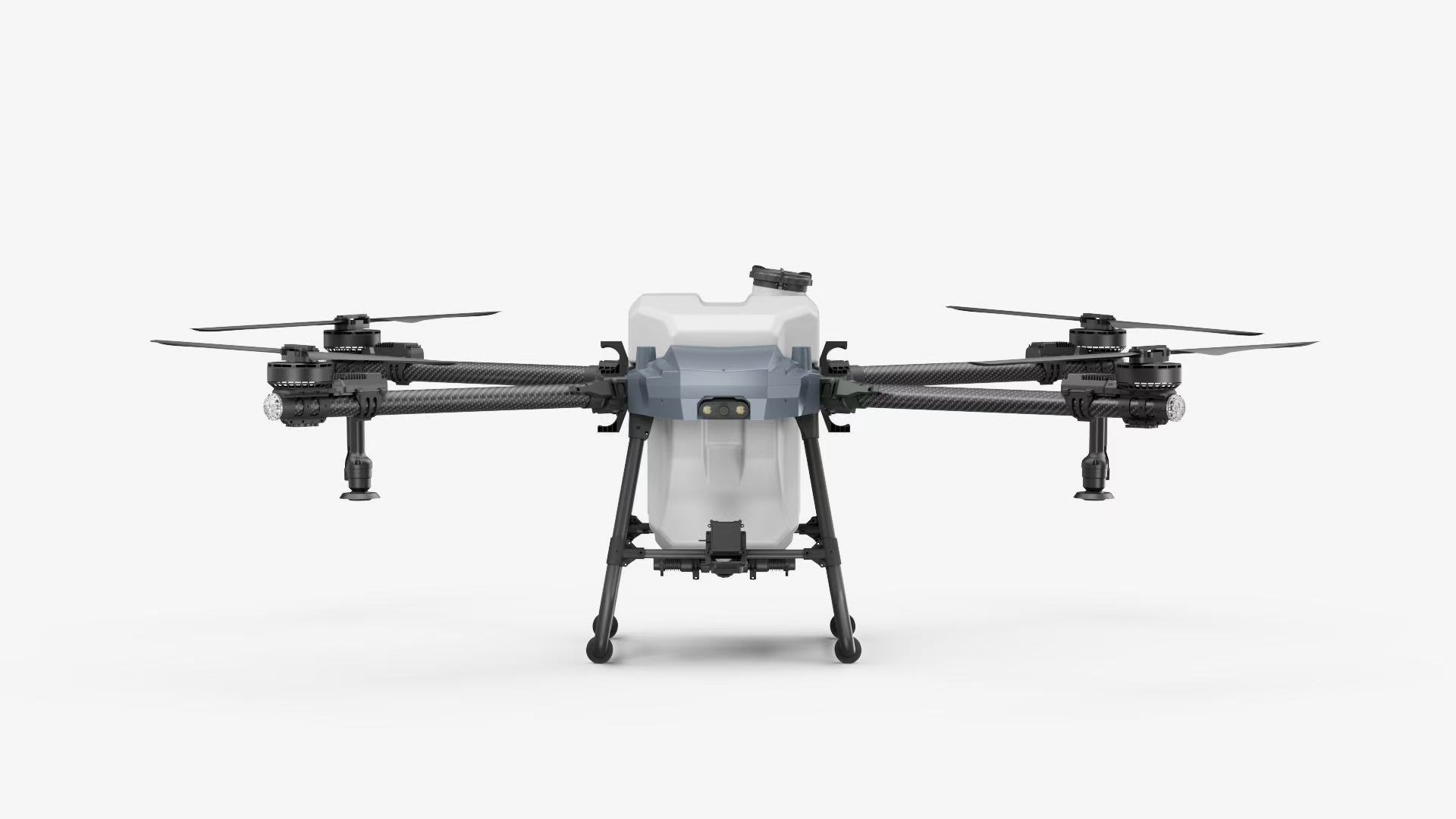

The BR 50PRO is the advanced version of the BR 50, designed for superior performance and reliability. Featuring carbon fiber propellers, upgraded battery (650 cycles) and motor, and a modular flight control system, it ensures smoother, more stable flights. With a 55L spraying tank, 80L spreading tank, and 5m/s wind resistance, it’s built for efficiency and durability. The foldable design, obstacle avoidance, and night flying capabilities make it the ultimate tool for modern farming.
Technical Specifications
We provide BRS50 PRO Agricultural Drone， the main technical parameters are as follows:
|
Detailed parameters |
|||
|
Aircraft Material |
Aerospace Carbon Fiber + Aerospace Aluminum |
Flight Mode (Full Auto) |
√ √ |
|
Wheelbase |
2310mm |
Automatic Altitude Setting |
√ |
|
Max. take-off weight |
100kg |
Aircraft Auto-pointing |
√ |
|
Max. Load Weight |
50kg |
Auto-return |
√ |
|
Aircraft Weight |
32.3KG (excl. battery) |
Automatic Abstacle Avoidance |
√ |
|
Spraying Tank |
55L |
Out of Control Return |
√ |
|
Spreading Tank |
80L |
Low Voltage Return |
√ |
|
Flight hight |
≤30m |
AB point memory operation |
√ |
|
Effective Spray Width |
8-12m(at a height of 3 m above the crops） |
Autonomous Planning |
√ |
|
Max. Flight Speed |
12m/s |
break point memory |
√ |
|
Flight Time |
No load 20min/Full load 8-12min |
Break Point Renewal Spraying |
√ |
|
Drone power life |
≤100000hours |
UAV GPS System |
√ |
|
Drone frame life |
≥10years |
Ground Station |
Optional |
|
Flight Radius |
No cover 5km |
Video Transmission |
Optional |
|
Air Hover |
Any direction |
Front and rear obstacle avoidance radar |
Optional |
|
Max.Spray Flow Rate |
32L/min |
Propeller |
Foldable |
|
Nozzle type |
Centrifugal nozzle*4 |
Waterproof Motor / ESC |
√Foldable |
|
Spraying Efficiency |
Anti-fall Performance |
√√√Foldable |
|
|
Max. Wind Resistance |
5m/s |
Night Flying Function |
√Foldable |
|
Batteries |
18S 30000mAh 1000 cycles |
Folding |
Foldable |
|
Charging time |
9-12min |
Over-the-horizon operation |
√Foldable |
|
Flight Mode (Manual) |
√ |
Flight Stability |
√√√Foldable |
|
Flight Mode (Intelligent) |
√ |
Maintenance Tools |
√ |
|
Remote Control Screen Size |
7.2 inch. |
Applicable objects |
Various crops and fruit trees |
|
Remote control battery capacity |
10000mAh |
Applicable Places |
All terrain |
Application scenario
Farmland Inspection, Crop Spraying, Rice Seeding, Irrigation Management, Agricultural Product Transportation,
