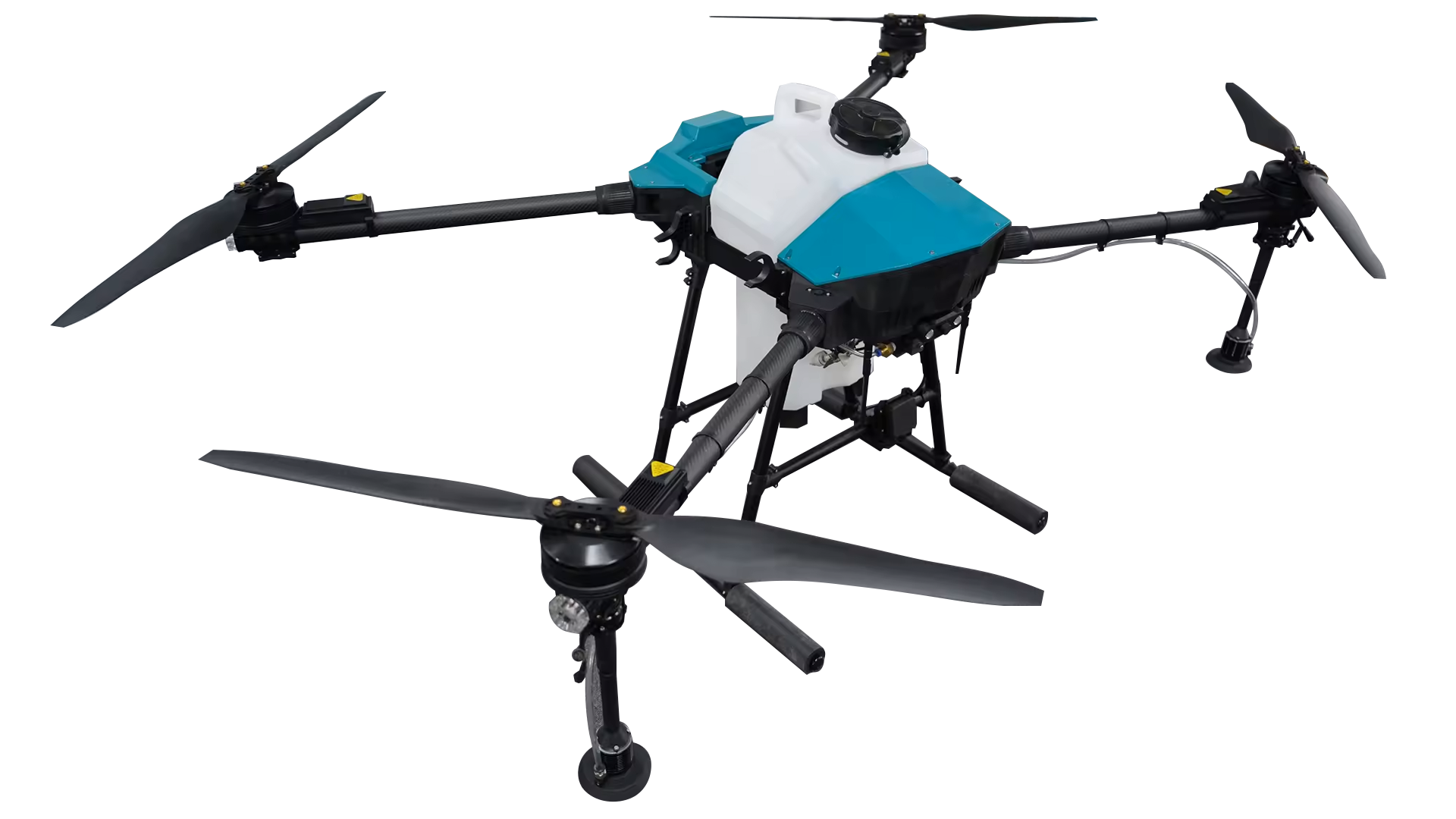

BR420 Agricultural Drone Crop Spraying Drone Sprayer

Boran drones new third-generation BR420 agricultural drone, designed for modern agricultural operations.

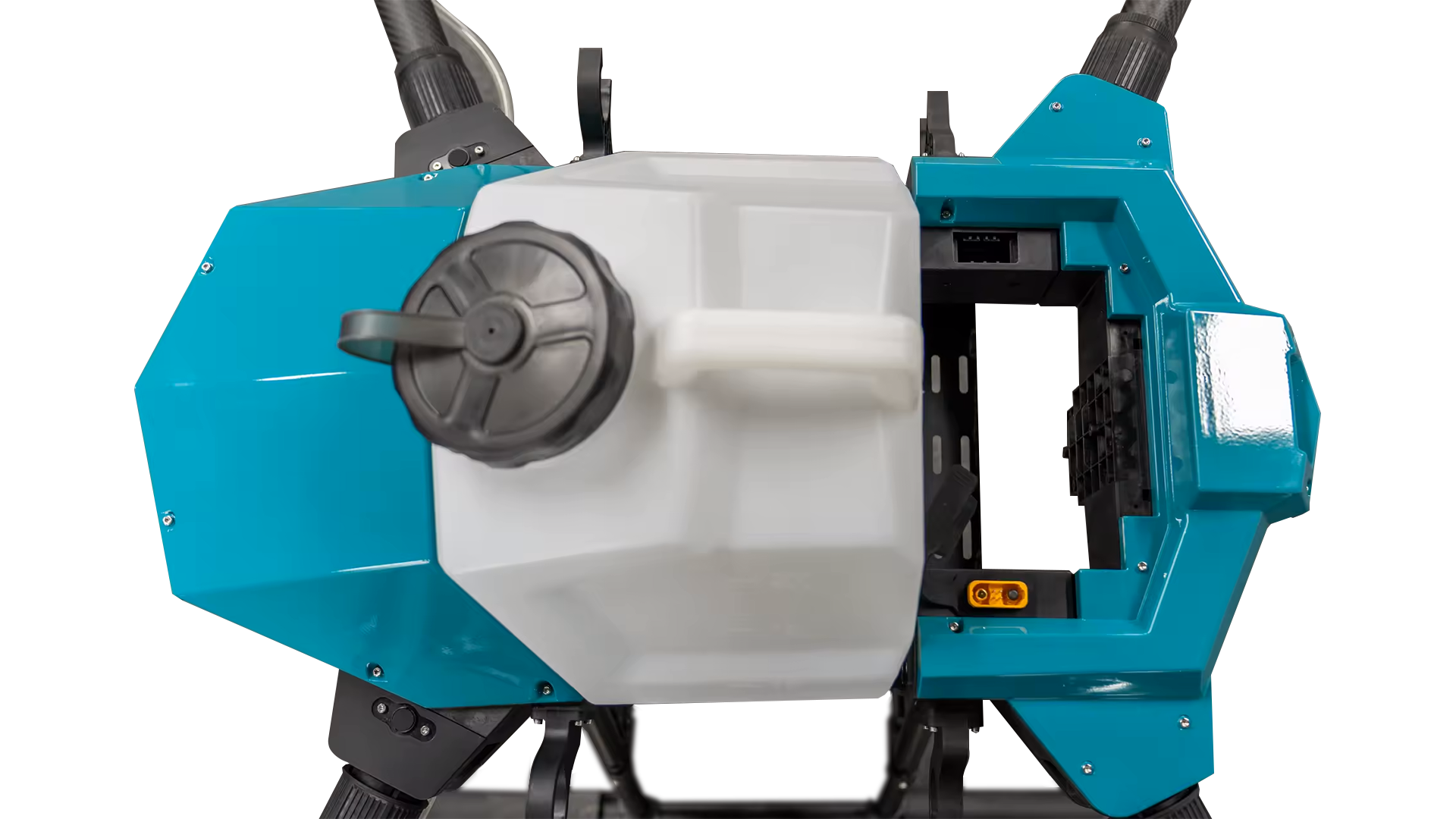

1. Features a medicine cabinet with a capacity of up to 20L and a stable four-axis architecture. When combined with the user-friendly operation of the intelligent remote control, it significantly enhances working efficiency and effectiveness.

2. The BR420 agricultural UAV is constructed using carbon fiber and aviation aluminum materials, ensuring a sturdy and efficient airframe.

3. The modular design of the airframe allows for quick disassembly and replacement of each component, facilitating easy maintenance and repair.

We provide BR420 Agricultural Drone， the main technical parameters are as follows:

(1) High-Performance Materials and Robust Structure
The BR420 agricultural UAV fuselage is constructed using a combination of carbon fiber and aviation aluminum, resulting in a high-performance material and a robust structure that ensures durability even in challenging environments. Additionally, the incorporation of a new folding truss structure allows for quick folding, facilitating convenient transportation and storage.

(2) Remote Control and Long Endurance
Equipped with a new smart remote controller featuring a 5.5-inch high-brightness display and the latest APP control software, the BR420 offers improved operational smoothness and stability. The overall endurance time exceeds 7 hours, fully meeting the demands of long-duration, high-intensity operations.

(3) Advanced Monitoring and Obstacle Avoidance System The BR420 is fitted with an FPV HD camera for real-time monitoring of the flight environment, ensuring flight safety. Front and rear obstacle avoidance radars and terrain-following radars can identify and avoid common fixed and moving obstacles during operations, achieving superior obstacle avoidance performance.

(4) Intelligent Flight Path Operations and Automatic Return The advanced intelligent flight path operation mode can map various obstacles within and outside the field, achieving intelligent return and fully autonomous operations. The system includes a precise drug cut-off point prediction function, optimizing pesticide and battery usage to cover larger areas per unit of battery power, increasing automation and operational efficiency. Multiple automatic return functions, including one-key return, no-pesticide return, low-battery return, and loss-of-signal return, ensure the UAV safely returns in all scenarios.

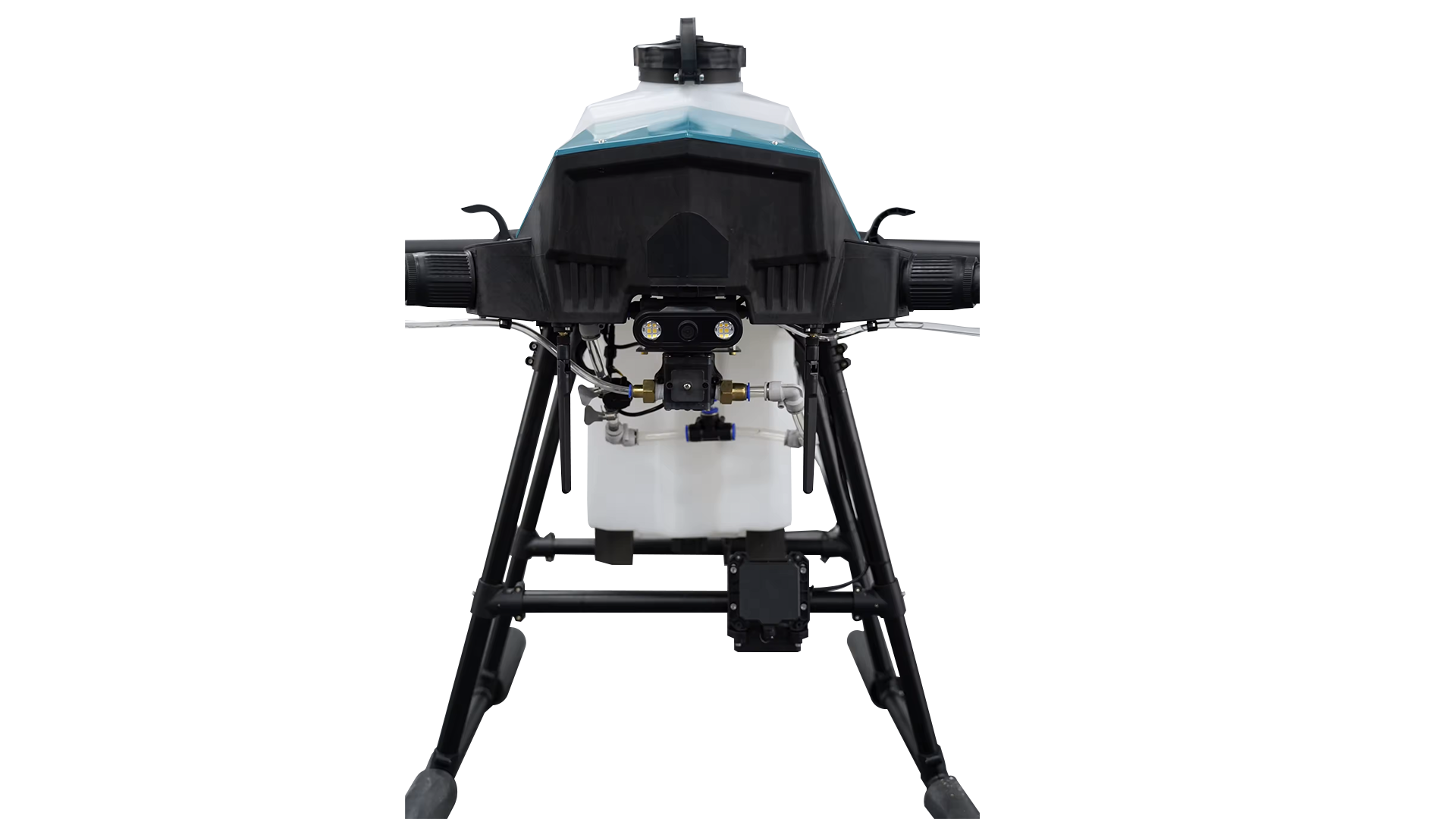

(5) Efficient Spraying System The BR420 features a high-pressure or centrifugal nozzle layout. The high-pressure spraying width ranges from 5 to 7 meters, with a spraying height of 1.5 to 2 meters. The centrifugal nozzle also offers a spraying width of 5 to 7 meters and a spraying height of 1.5 to 2 meters, ensuring even pesticide distribution and improved crop protection. The 20L pesticide tank reduces the need for frequent refills, increasing operational continuity, with a maximum efficiency of 60-100 acres per hour.

(6) Reliable Protective Design The entire UAV has a protection rating of IP6X, featuring dustproof, waterproof, and corrosion-resistant capabilities. The core components are designed with triple protection, ensuring reliable operation in various environments.

Farmland Inspection, Crop Spraying, Rice Seeding, Irrigation Management, Agricultural Product Transportation
