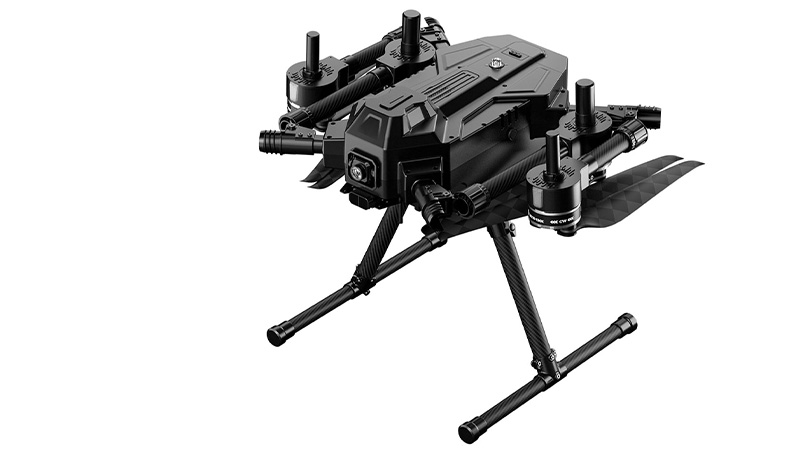

BR Xplore 900 Industrial Drone
Product Description
A versatile, high-performance drone designed for various industries. Features a foldable design, powerful propulsion, and smart battery for long flight times.
1. Supports third-party payloads (cameras, speakers, lights).
2. Dual expansion slots for added flexibility.
3. Stable and efficient performance.
Technical Specifications
| Symmetrical motor shaft size | 900mm |
| Endurance battery time | 56min (unladen),43min（fully loaded） |
| Mapping distance | 35KM |
| Remote Control Configuration | Seven-inch 1080P HD large screen |
| communications band | 2.4G/5G |
| Maximum horizontal flight speed | 20m/s |
| Remote control range | 8h,quick charge |
| load capacity | 10.5kg (maximum take-off weight) |
| 2.1kg (maximum load weight) | |
| Power Configuration | 6.5kg single axis maximum pulling force |
| position accuracy | RTK |
| Maximum Flight Altitude | 5000 meters |
| IP Rating | IPx4 |
| Wind Resistance | 12 m/s |
| FPV Camera | Field of View (FOV): 122° (horizontal), 113° (vertical) |
| Controllable Pitch Rotation Angle: 68° | |
| FPV Camera Recording | Supports 4K Recording |
| FPV Mode | Pitch Follow Mode + FPV Mode |
| Operating Temperature Range | -20℃ to 50℃ |
| Hovering Time (No Load, 19Ah Battery) | Approximately 55 minutes |
| Hovering Time (Full Load, 19Ah Battery) | Approximately 43 minutes |
Equipment Features

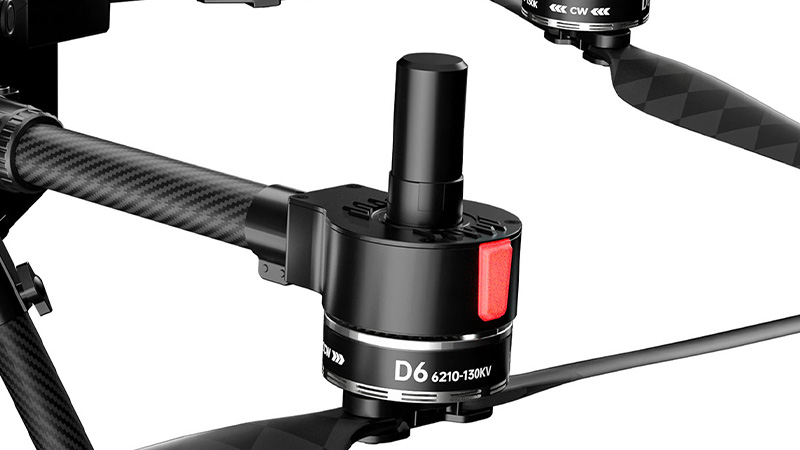

1.Powerful Propulsion System
Self-developed FOC ESC, dual throttle redundancy (PWM + CAN).
Max thrust: 6.5 kg/axis; efficiency: 9.3 g/W at full load.
2.AI Tracking Module
10 TOPS @ INT8 computing power.
Tracks humans, license plates, insulators, and more.
3.Obstacle Avoidance
Front and rear obstacle detection and avoidance.
4.Dual-Antenna RTK Positioning
Centimeter-level accuracy with industrial-grade compass.
Strong anti-interference in complex environments.
5.Long-Endurance Battery
Up to 43 minutes at full load.

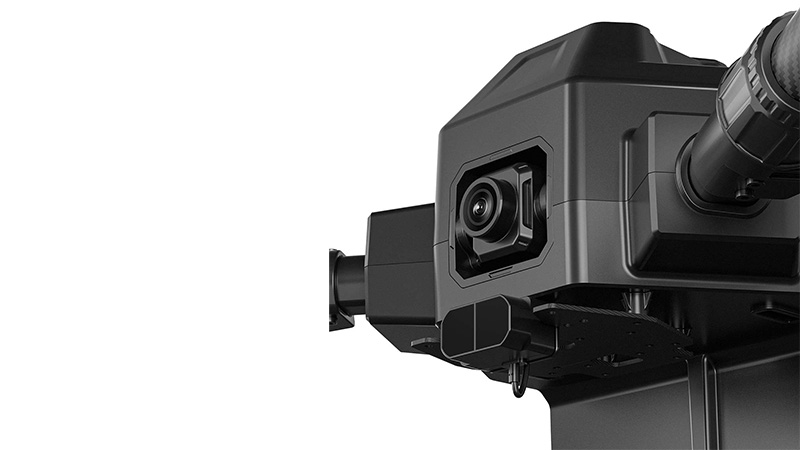

6.4K FP Camera
Ultra-wide-angle, switchable gimbal/flight view.
Application scenario
Users can customize and expand functionalities based on their needs. It is applicable in various scenarios such as smart cities, public safety, precision agriculture, rescue operations, inspection, and surveying. Truly versatile and adaptable, it assists in efficiently executing tasks.
