Agricultural Drone Series

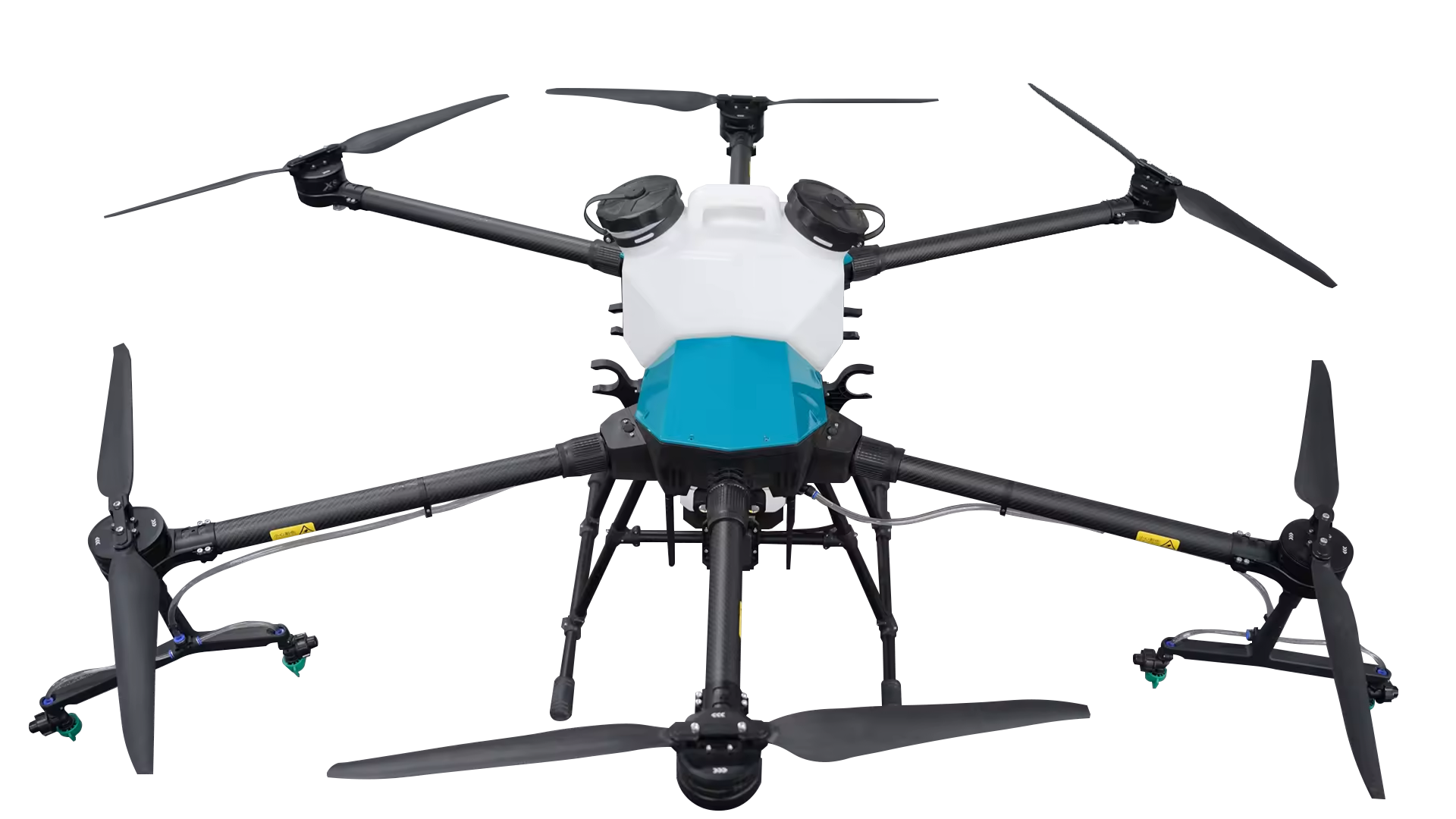

BR 16 Agricultural Drone UVA AG Spraying Drone Crop Dusting Drones
Product Description
The BR 16 agricultural drone is the latest in Boran Drones third-generation product range, designed for modern agricultural operations with advanced features and robust construction. The 16L pesticide tank balances capacity and efficiency, suitable for medium-sized fields. It reduces the frequency of refills and provides continuous spraying for optimal coverage and protection.
Technical Specifications
We provide BR16 Agricultural Drone, the main technical parameters are as follows
|
BR16 Four-axis layout Main Parameters |
|||
| Aircraft Axle Distance | 1090mm | Wind Resistance Level | 5-6 Levels |
| Cruising Speed | 5-10m/s | Endurance Time | 7-18min |
| Empty Machine Weight | 14.1kg | Operating Temperature | -15℃~55℃ |
| Take-off Weight | 35.95kg | Spray Range | 6-8m |
| Spray Height | 1.5-2m | Nozzle Type | Pressure |
| Water Tank Capacity | 16L | Battery Configuration | 22000Mah（12S） |
| Spreading Capacity | / | Charging Time | 13-20min |
| Multiple Flight Mode Options: Full Autonomous Operation Mode, A-B Point Operation Mode, and Manual Operation Mode. | |||
| BR16 Six-axis layout Main Parameters | |||
| Aircraft Axle Distance | 1090mm | Wind Resistance Level | 5-6 Levels |
| Cruising Speed | 5-10m/s | Endurance Time | 8-22min |
| Empty Machine Weight | 34.5kg | Operating Temperature | -15℃~55℃ |
| Take-off Weight | 60.5kg | Spray Range | 6-8m |
| Spray Height | 1.5-2m | Nozzle Type | Pressure |
| Water Tank Capacity | 16L | Battery Configuration | 22000Mah（12S） |
| Spreading Capacity | / | Charging Time | 15-20min |
| Multiple Flight Mode Options: Full Autonomous Operation Mode, A-B Point Operation Mode, and Manual Operation Mode. | |||
Equipment Features
1. Durable Construction with High-Performance Materials
Build: Crafted from carbon fiber and aviation aluminum, ensuring longevity.
Design: Foldable truss structure for convenient transport and storage.
2. Advanced Remote Control and Extended Endurance
Controller: Features a 5.5-inch high-brightness display and advanced APP control.
Operation: Provides smooth control with over 7 hours of endurance.
3. Enhanced Monitoring and Safety Mechanisms
Real-Time Monitoring: Equipped with an FPV HD camera.
Obstacle Detection: Front and rear radars for effective obstacle avoidance.
4. Smart Navigation and Safe Return
Autonomous Flight: Intelligent path planning for automated operations.
Efficiency: Accurately predicts pesticide usage.
Return Functionality: Multiple return modes for secure landings.
5. High-Pressure Spraying System
Coverage Area: Can spray 1.3-2.6 acres in about 12 minutes.

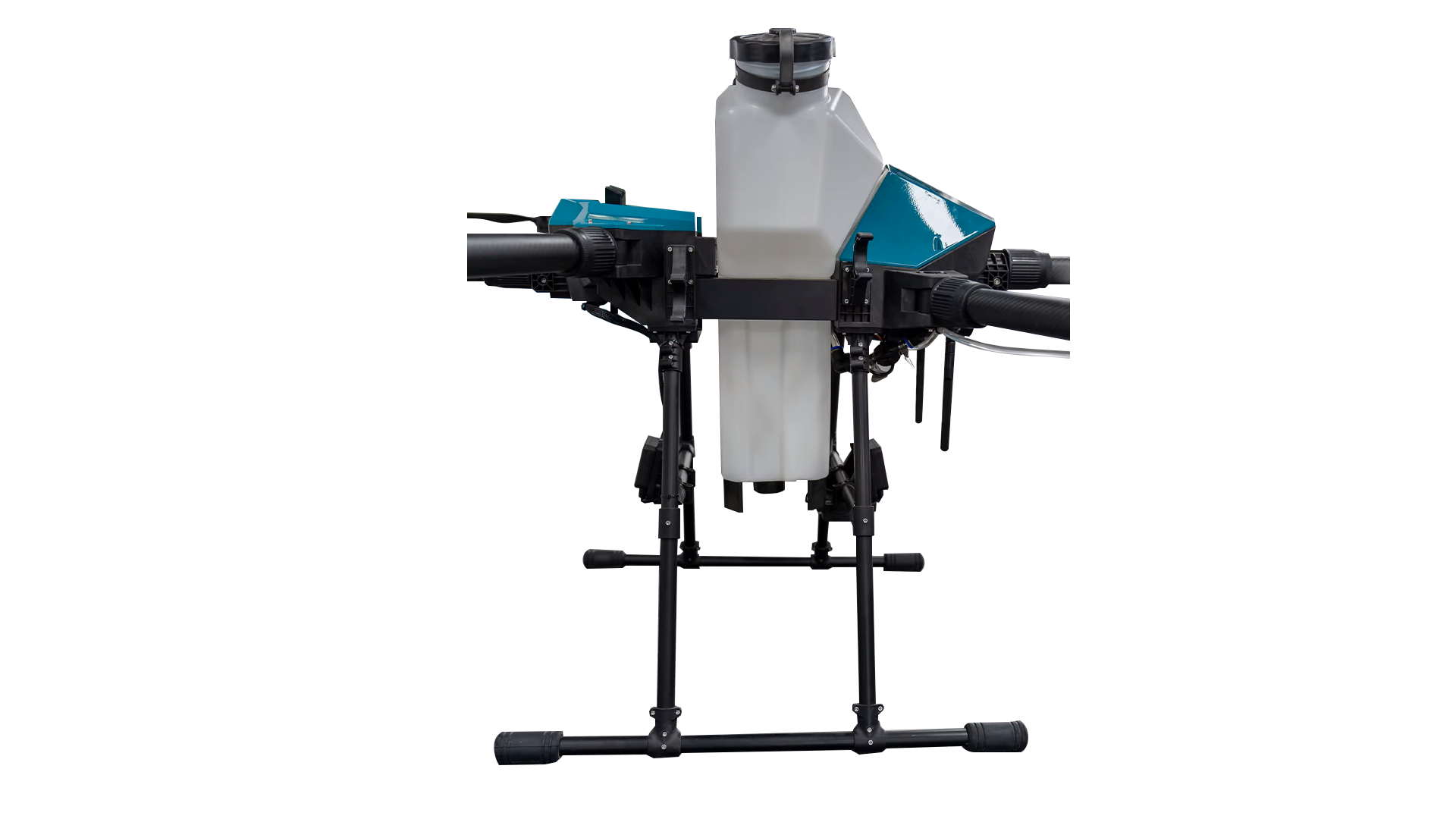

Tank Capacity: The 16L tank optimizes efficiency and minimizes refills, perfect for medium fields.
6. Resilient and Protective Design
Protection: IP6X rating for dust, water, and corrosion resistance.
Core Components: Triple-protected for reliable performance.
7. User-Friendly Operation
Ease of Use: Simple to operate, suitable for solo operators.
Additional Info: Visit our Agriculture Solutions page for more details.
Application scenario
Farmland Inspection, Crop Spraying, Rice Seeding, Irrigation Management, Agricultural Product Transportation,
Optional accessories for the machine
| Optional Accessories | Upgrade Components | Consumable Parts |
| Spare Battery | Terrain Radar | Motor |
| Charger | Obstacle Sensors | Water Pump |
| Propeller Guard | Upgraded Battery | Propellers |
| Enhanced Propellers | Upgraded Materials | Landing Gear |
| Low-Noise Propellers | High-Performance Motor | Body Shell |
| Enhanced Flight Control System | Arm Components | |
| GPS Module | Nozzles and Spray Rods | |
| Software Upgrade |
