Agricultural Drone Series

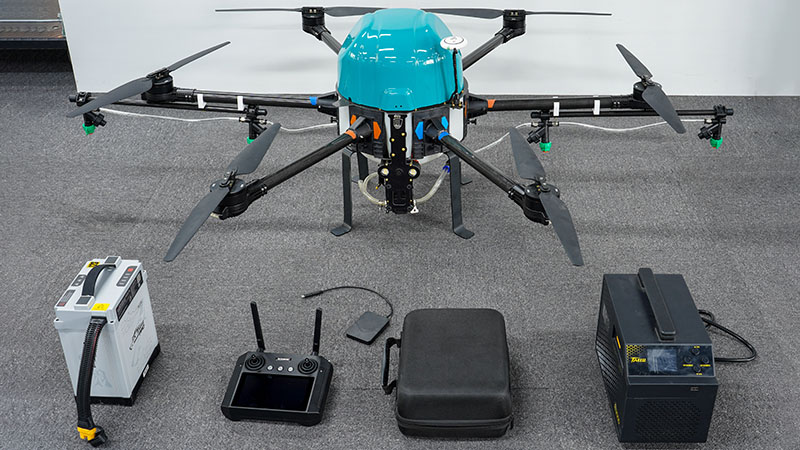

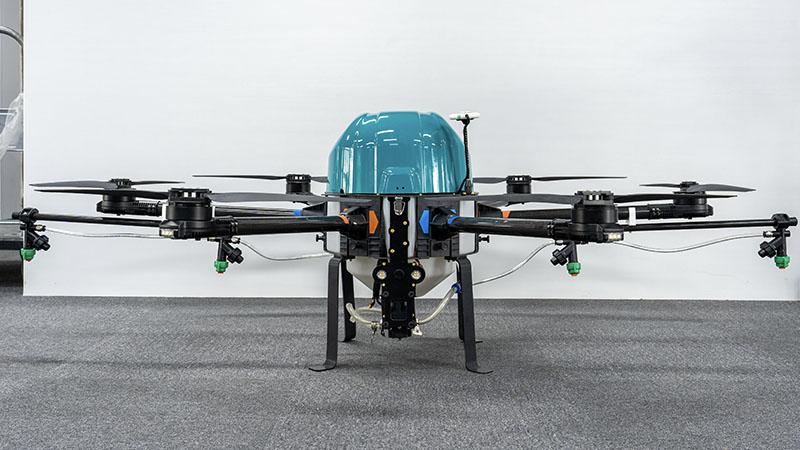

BR 10 Agricultural Drone UVA Agri Drone Spraying Drone
Product Description
The BR 10 is ideal for small to medium agricultural operations, providing cost-effective and efficient crop protection. With its robust design and advanced features, it ensures smooth operation in various challenging environments. The 10L pesticide tank offers a cost-effective solution for smaller operations.
Technical Specifications
We provide BR 10 Agricultural Drone, the main technical parameters are as follows:
BR 10 Six-axis layout Main Parameters | |||
Aircraft Axle Distance |
1350mm |
Wind Resistance Level |
5-6 Levels |
Cruising Speed |
5-10 m/s |
Endurance Time |
6-15min |
Empty Machine Weight |
32.5 kg |
Operating Temperature |
-15℃~55℃ |
Take-off Weight |
58.5 kg |
Spray Range |
6-8m |
Spray Height |
1.5-2 m |
Nozzle Type |
Pressure |
Water Tank Capacity |
10 L |
Battery Configuration |
12000Mah（6S） |
Spreading Capacity |
/ |
Charging Time |
10-15min |
Multiple Flight Mode Options: Full Autonomous Operation Mode, A-B Point Operation Mode, and Manual Operation Mode. | |||
Equipment Features

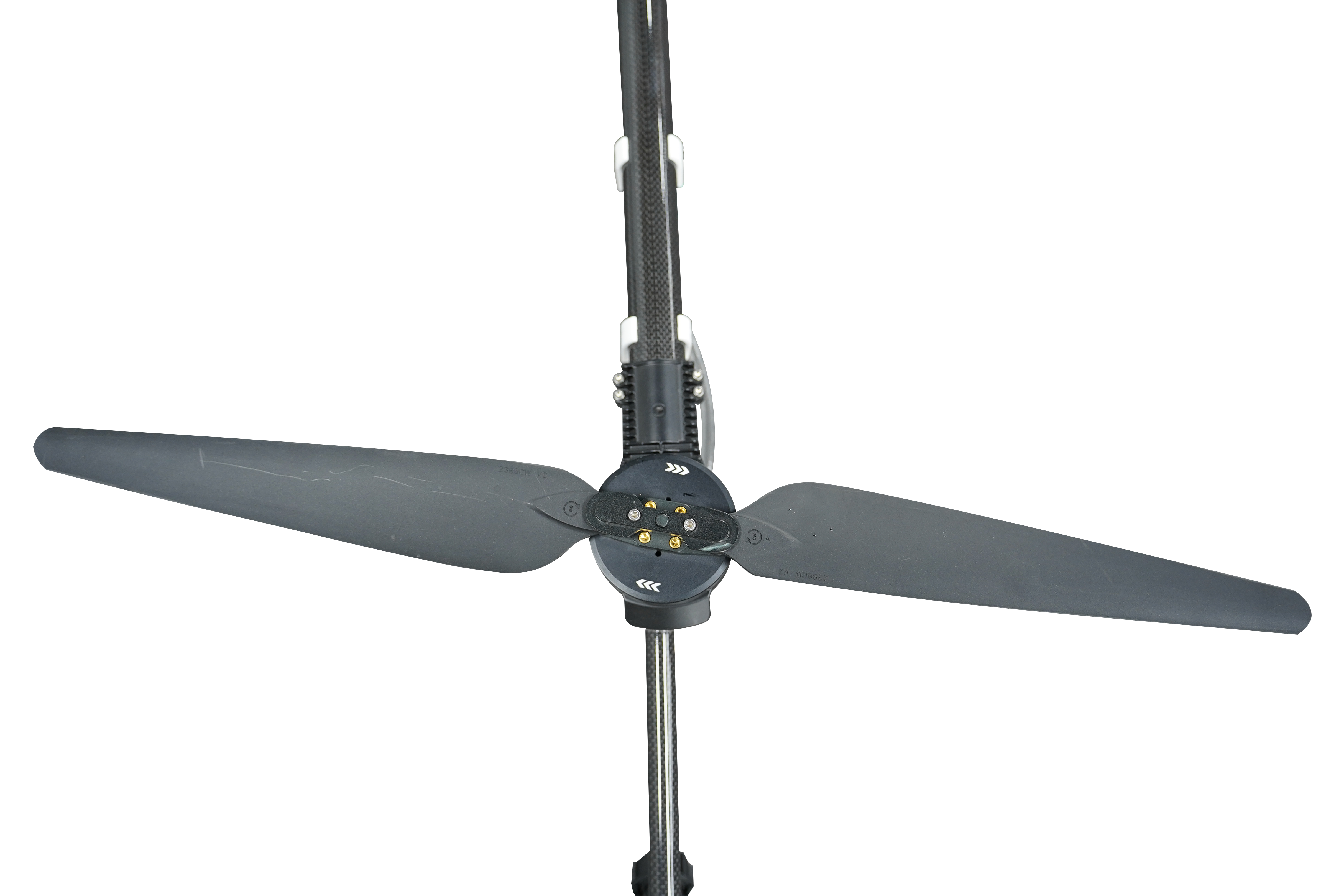

1. High-Performance Structure
Materials: Carbon fiber and aviation aluminum for durability.
Design: Folding truss structure for easy transport and storage.
2. Advanced Remote Control
Display: 5.5-inch high-brightness screen.
Control: New smart controller with advanced APP software.
Endurance: Over 7 hours of operation time.
3. Enhanced Monitoring and Safety
Camera: FPV HD camera for real-time flight monitoring.
Obstacle Avoidance: Front and rear radars for safety.
4. Intelligent Operation
Flight Path: Autonomous obstacle mapping and operation.
Return Functions: Multiple return scenarios for safety.
Efficiency: Precise pesticide usage prediction.

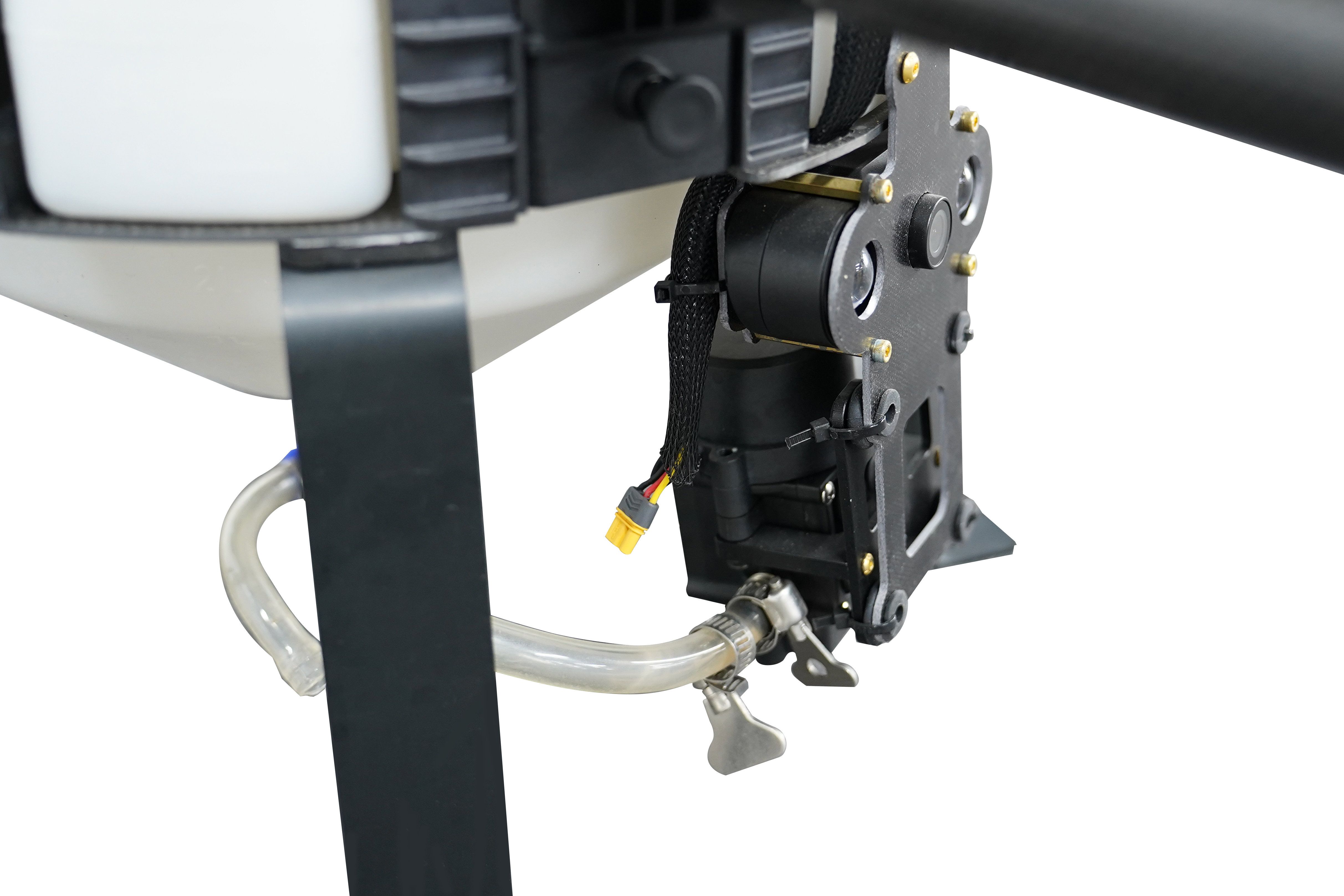

5. Efficient Spraying System
Spraying Width: 6-8 meters.
Spraying Height: 1.5-2 meters.
Coverage: 0.7-1.7 acres per 10-minute session.
Pesticide Tank: 10L for cost-effective and even distribution. The 10L pesticide tank offers a cost-effective solution for smaller operations.
6. Robust and Reliable Design
Protection: IP6X rating, dustproof, waterproof, corrosion-resistant.
Core Components: Triple protection for various environments.
7. Easy Maintenance
Modular Design: Quick disassembly and replacement of components.
User-Friendly: Smart remote control for efficient operation.
Application scenario
Farmland Inspection, Crop Spraying, Rice Seeding, Irrigation Management, Agricultural Product Transportation,
Optional accessories for the machine
| Optional Accessories | Upgrade Components | Consumable Parts |
| Spare Battery | Terrain Radar | Motor |
| Charger | Obstacle Sensors | Water Pump |
| Propeller Guard | Upgraded Battery | Propellers |
| Enhanced Propellers | Upgraded Materials | Landing Gear |
| Low-Noise Propellers | High-Performance Motor | Body Shell |
| Enhanced Flight Control System | Arm Components | |
| GPS Module | Nozzles and Spray Rods | |
| Software Upgrade |
