Autonomous Driving System for Agricultural Machinery
Product Description
Our innovative agricultural machinery autopilot system, based on the Beidou dual-antenna system, uses a high-torque motor for steering. This system is ideal for various agricultural machines, addressing the installation challenges of hydraulic systems. The forward-looking design features internet communication, agricultural machinery informatization, and remote control capabilities, laying a foundation for future agricultural big data.
Product video
Application scenario

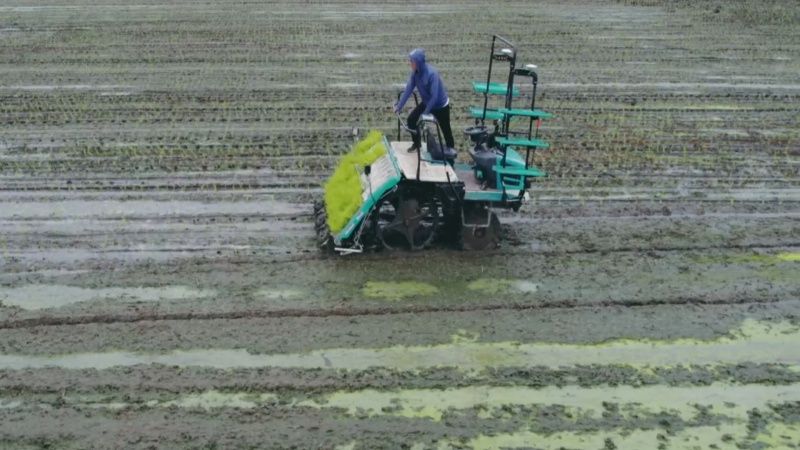

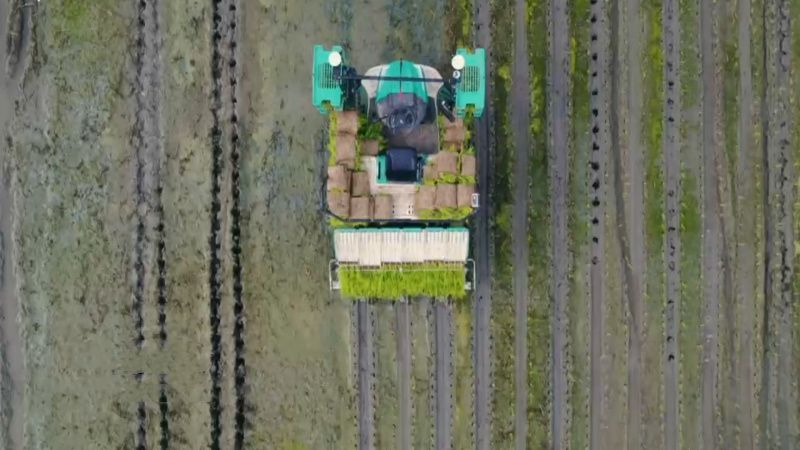

Suitable for multiple agricultural machines such as tractors, rice transplanters, and harvesters.
Supports functionality expansion for satellite leveling, precise fertilization, and spraying control.
Technical Specifications
Project |
Unit |
Design value |
Model name |
/ |
Type A X2000BD-2.5GD type Beidou automatic navigation and driving system |
Steering control type |
/ |
Electric steering wheel type |
On-board computer processor model number |
/ |
Allwinner T3 |
On-board computer memory |
GB |
2 |
Car-mounted computer hard drive |
GB |
16 |
On-board computer operating system and software version |
/ |
Android 6.0 |
On-board computer display terminal size and resolution |
/ |
10-inch, 1024 * 600 |
Type of vehicle-mounted computer interface |
/ |
RS232、CAN、RS485 |
On-board computer data input and output protocol |
/ |
NMEA |
Satellite receiver type and frequency point |
/ |
BDS B1/B2+GPS L1/L2+GLONASS L1/L2+GALILEO E1+E5b |
Satellite receiver host board firmware version |
/ |
Build19222 |
Number of satellite receiver channels |
/ |
432 |
Types of satellite receiver interface |
/ |
RS232、CAN、RS485 |
Differential type of the satellite receiver |
/ |
RTK |
Data update rate of satellite receiver data |
Hz |
10 |
Satellite receiver receiving antenna type |
/ |
double antenna |
Steering controller motherboard firmware version |
/ |
2320 |
Hydraulic valve or rotating motor model and specification |
/ |
EMS2 |
Angle sensor model and specification |
/ |
S31 |
Integration part composition |
/ |
Integration of satellite receiver and on-board terminal |
The above data is for reference only | ||
Equipment Features
1. Stability
IP67 Dust & Water Resistance: Designed to withstand harsh agricultural environments.
Network RTK Technology: Ensures stable data transmission with anti-interference capabilities, featuring breakpoint continuity.
Intelligent Algorithms: Maintains high precision operations, adapting to varying ground conditions.
2. Ease of Use
Simple Installation: Highly integrated hardware, easy to assemble and disassemble, reducing component complexity.
User-Friendly Interface: Intuitive design for quick and easy operation.
3. Innovation
Industry-First Design: Autonomous driving system using Beidou navigation, pioneering in the market.
Cost-Efficient: Over 60% savings compared to traditional hydraulic control systems.
High Integration: Supports internet communication, remote monitoring, and agricultural big data recording.
