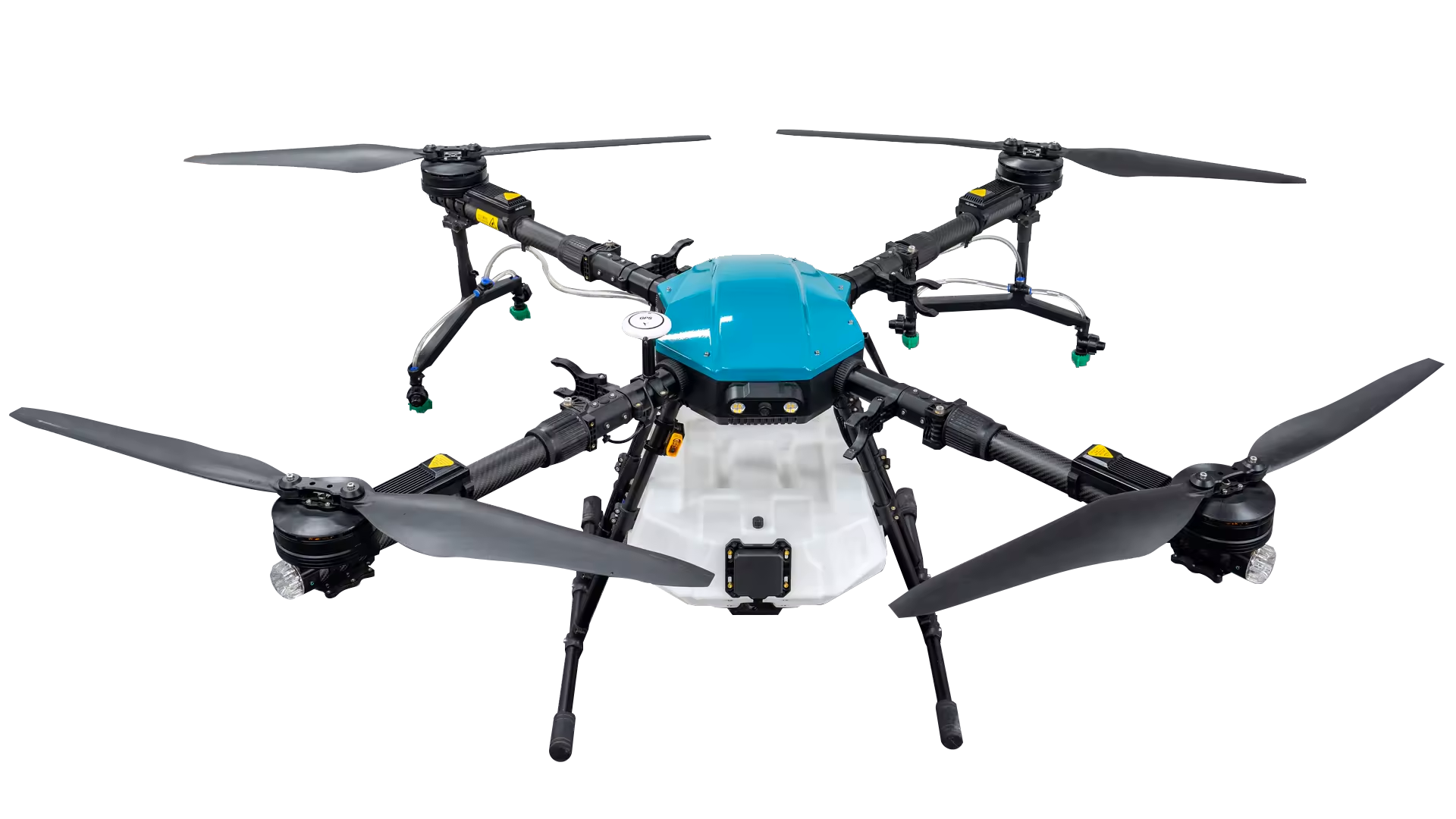

BR20A Agricultural Drone UVA Crop Spraying Drone Sprayer

1. High-Performance Materials and Robust Structure

The BR20A agricultural drone fuselage is constructed using a combination of carbon fiber and aviation aluminum, resulting in a high-performance material and a robust structure that ensures durability even in challenging environments. Additionally, the incorporation of a new folding truss structure allows for quick folding, facilitating convenient transportation and storage.

2. Remote Control and Long Endurance

Equipped with a new smart remote controller featuring a 5.5-inch high-brightness display and the latest APP control software, the BR420 offers improved operational smoothness and stability.  The overall endurance time exceeds 7 hours, fully meeting the demands of long-duration, high-intensity operations.

3. Advanced Monitoring and Obstacle Avoidance System

The BR420 is fitted with an FPV HD camera for real-time monitoring of the flight environment, ensuring flight safety.  Front and rear obstacle avoidance radars and terrain-following radars can identify and avoid common fixed and moving obstacles during operations, achieving superior obstacle avoidance performance.

4. Intelligent Flight Path Operations and Automatic Return

The advanced intelligent flight path operation mode can map various obstacles within and outside the field, achieving intelligent return and fully autonomous operations.  The system includes a precise drug cut-off point prediction function, optimizing pesticide and battery usage to cover larger areas per unit of battery power, increasing automation and operational efficiency.  Multiple automatic return functions, including one-key return, no-pesticide return, low-battery return, and loss-of-signal return, ensure the UAV safely returns in all scenarios.

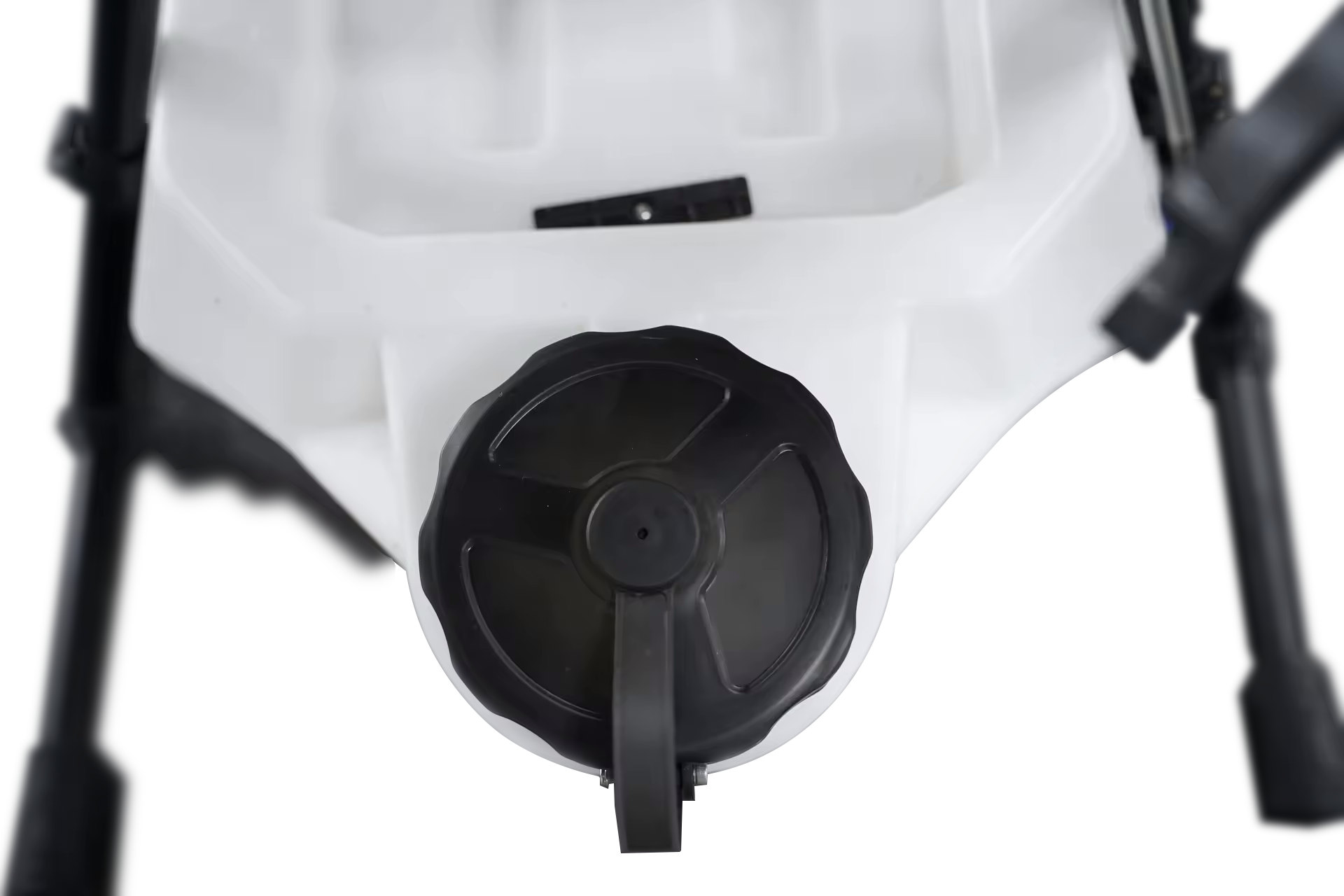

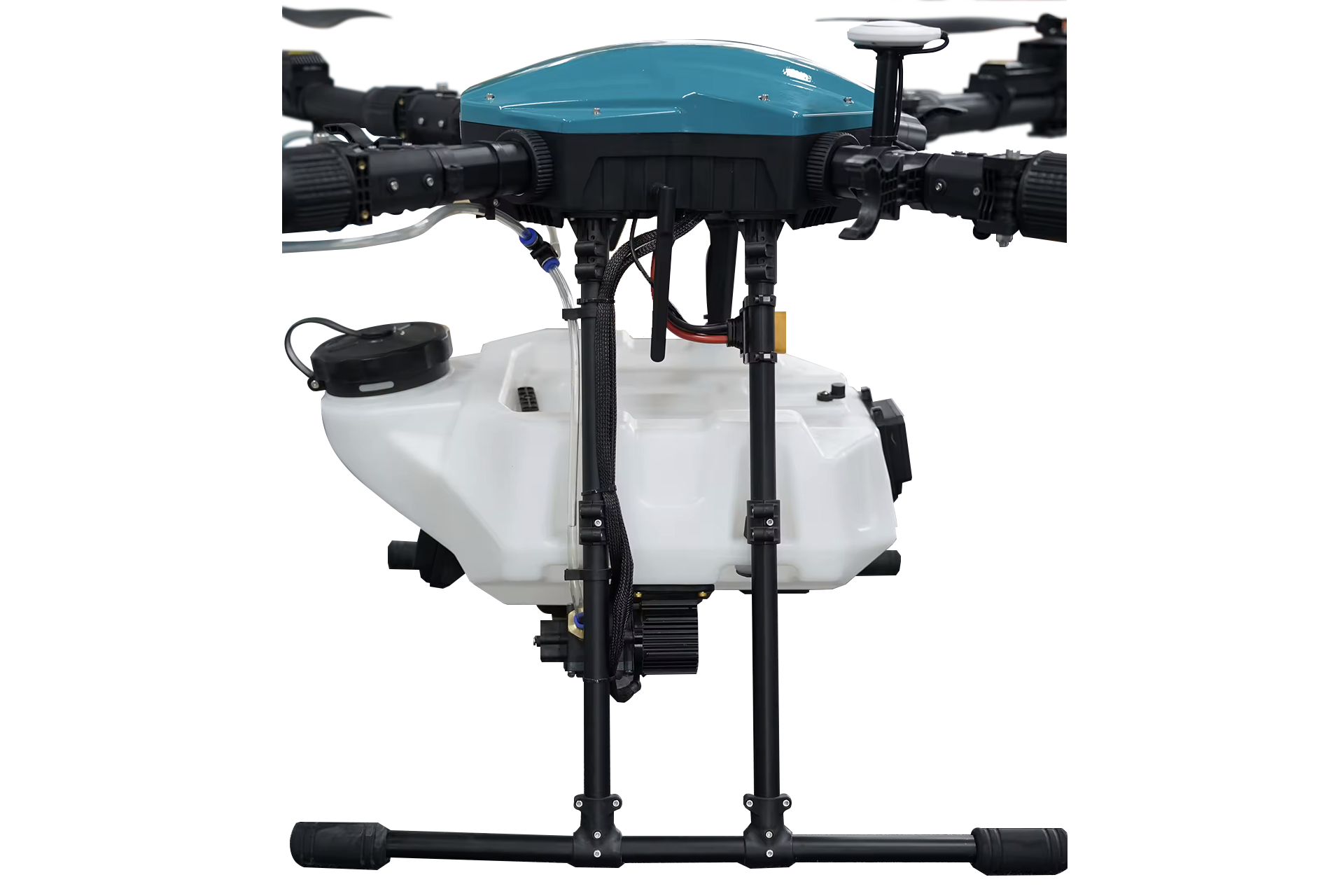

5. The BR20A is equipped with a high-pressure spraying system, with a spraying width of 6-8 meters and a height of 1.5-2 meters. It can cover an area of 1.7-3.3 acres with an estimated operation time of about 14 minutes per session. The 10L pesticide tank offers a cost-effective solution for smaller operations, ensuring even pesticide distribution and improved crop protection.

6. Reliable Protective Design

The entire UAV has a protection rating of IP6X, featuring dustproof, waterproof, and corrosion-resistant capabilities.  The core components are designed with triple protection, ensuring reliable operation in various environments.
